TCS 1286 CN-GP Decoder N Scale
$48.76
$60.95
Unit price
/
Unavailable
Shipping calculated at checkout.
TCS 1286 CN-GP Decoder N Scale is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
TCS 1286 CN-GP Decoder N Scale
$48.76
$60.95
Unit price
/
Unavailable
Description
Description

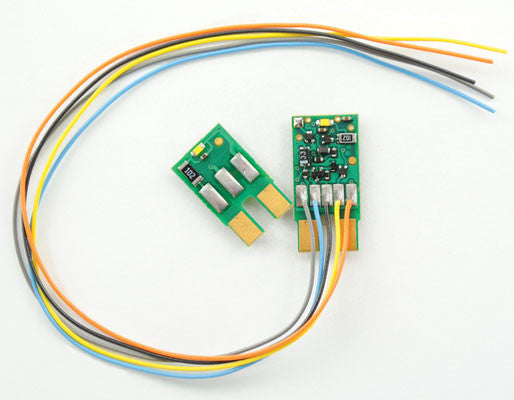

Train Control Systems / CN-GP Decoder (SCALE=N) Part # 745-1286
Interface Type:
Drop-In
Dimensions (L x W x H):.733”x.358”x.109” or 18.61mm x 9.09mm x 2.76mm
Scale: N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 3
Function Rating: 80 mA
12V Outputs: 1
Onboard LEDs: 2
The CN-GP is a N-scale drop-in decoder for Atlas, Kato, and Life Like locomotives. Examples include the following:
Atlas:
- GP7/GP9
- GP30/GP40/GP60
Kato:
- SD40
Life Like:
- GP18
- GP60
See the installation pages for a full list of compatible engines!
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
