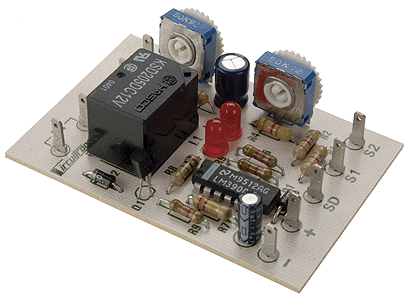

5400 Circuitron / AR-1 Automatic automatic polarity reverser that is ideally suited for use with point to point layouts part# = 800-5400

(ALL SCALES)

AR-1 AUTOMATIC REVERSE CIRCUIT

The CIRCUITRON AR-1is a basic automatic polarity reverser that is ideally suited for use with point to point layouts, displays, test tracks or reverse loop setups. The AR-1

utilizes an integrated circuit design and can safely switch up to 5 amp loads, making it compatible with virtually all scales. TheAR-1 is constructed on a 2” x 3” printed circuit board and requires a filtered12 - 15 volt DC supply for proper operation.The AR-1 includes 2 Opto-Sensors which are adequate for most normal hookups Push buttons may be incorporated into the circuit for manual reversing, if desired.

part # 800-5400 AR-1 AUTOMATIC REVERSE CIRCUIT
