TCS | SKU:
745-1549
20% off
1549 TCS Train Control Systems / MT1500 Decoder 2 MT SW1500 (SCALE=N) Part # 745-1549
$47.16
$58.95
Unit price
/
Unavailable
Shipping calculated at checkout.
1549 TCS Train Control Systems / MT1500 Decoder 2 MT SW1500 (SCALE=N) Part # 745-1549 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
1549 TCS Train Control Systems / MT1500 Decoder 2 MT SW1500 (SCALE...
$47.16
$58.95
Unit price
/
Unavailable
Description
Description
Train Control Systems / MT1500 Decoder 2 MT SW1500 (SCALE=N) Part # 745-1549
Interface Type:
Drop-In
Dimensions (L x W x H): 0.51" x 0.39" x 0.1" or 12.95mm x 9.9mm x 2.54mm
Scale: N Scale
Continuous/Peak: 1.3/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
12V Outputs: 1
Onboard LEDs: 1

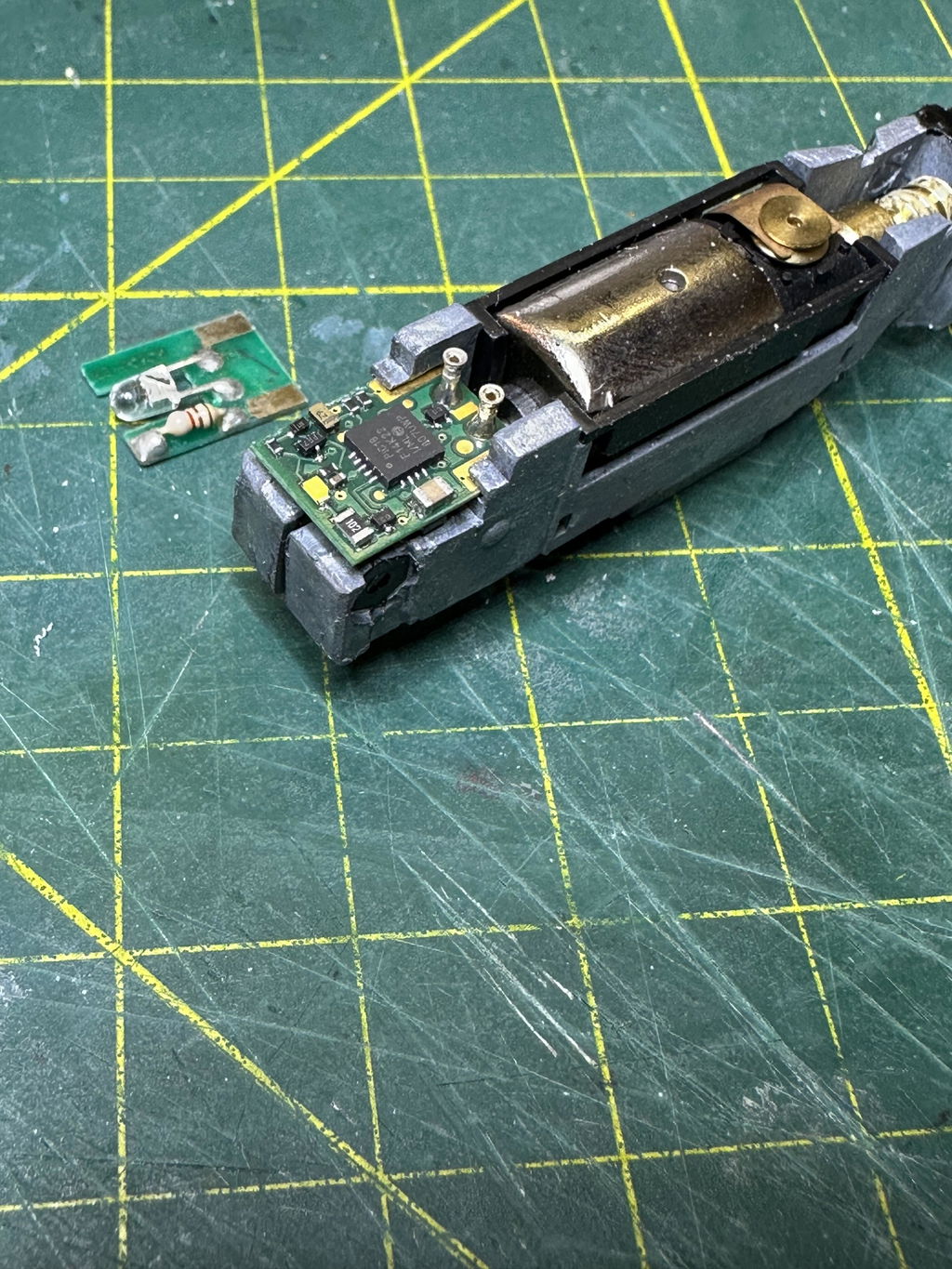

The MT1500 is a N-scale drop-in decoder which was designed specifically to fit in the Micro-Trains Line SW1500 diesel switcher. The decoder features a built-in forward headlight, and support for one additional light function.
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
Specifications
Specifications
-
Scale-
-
Product Type-
-
Height
-
Width
-
Depth
