Walthers  |  SKU: 942-501

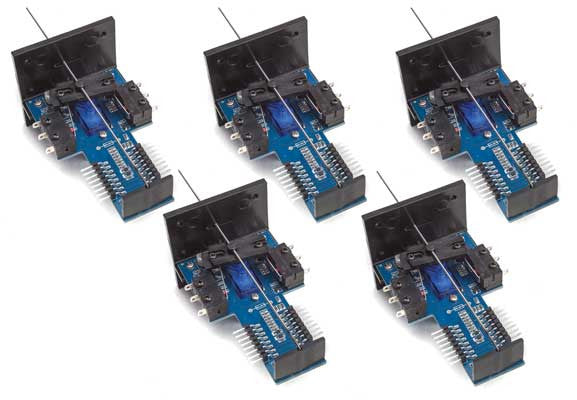

Walthers 942-501 Vertical Switch Machine 5 Pack (Vertical Mount) Part#942-501

$89.99 $99.99
Shipping calculated at checkout.

Description

Walthers 942-501 Vertical Switch Machine 5 Pack (Vertical Mount) Part#942-501

Great value - 5 Layout Control System Switch Machines for one low price!

Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power - a DCC accessory decoder is integrated into the switch machine. The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator-control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.

The Walthers Layout Control System Vertical Switch Machine features:

  • Fully assembled, servo-based unit with approximately one second throw speed
  • Integrated DCC accessory decoder
  • Two built-in 5A switches to power frogs, signals and more
  • Self-locking mechanism for reliable positioning - servo power turns off when motion is complete
  • Adjustable throw and tension from 1/32" to 1/2" (1mm to 12mm) for turnouts in any scale from Z to O
  • Factory-assembled with output rod in centered position for fast and easy under-benchwork mounting
  • Wire in minutes with included cables
  • Outputs for both single or bi-color LEDs
  • Connecting cable included - easily expanded with Connecting Cable (#942-112, sold separately)
  • Horizontal mount measures 3-3/8" 8.5cm tall

Options include:

  • Adjustable throw speed from .5 to 5 seconds
  • Remote lock input for dispatcher to enable/disable local turnout control with CTC
  • Single/Alternate bi-color LED modes
  • Polarity route control for use of DPDT switch in place of fascia control
  • Complete instructions with mounting template - use with Walthers Layout Control System Turnout Drill Set (#942-140, sold separately)

Specifications

  • Scale
    -
  • Product Type
    -
  • Height
    2 in
  • Width
    2 in
  • Depth
    5 in
